Header file for a methods of the QGD Python Interface. More...

#include "qgd/Operation.h"

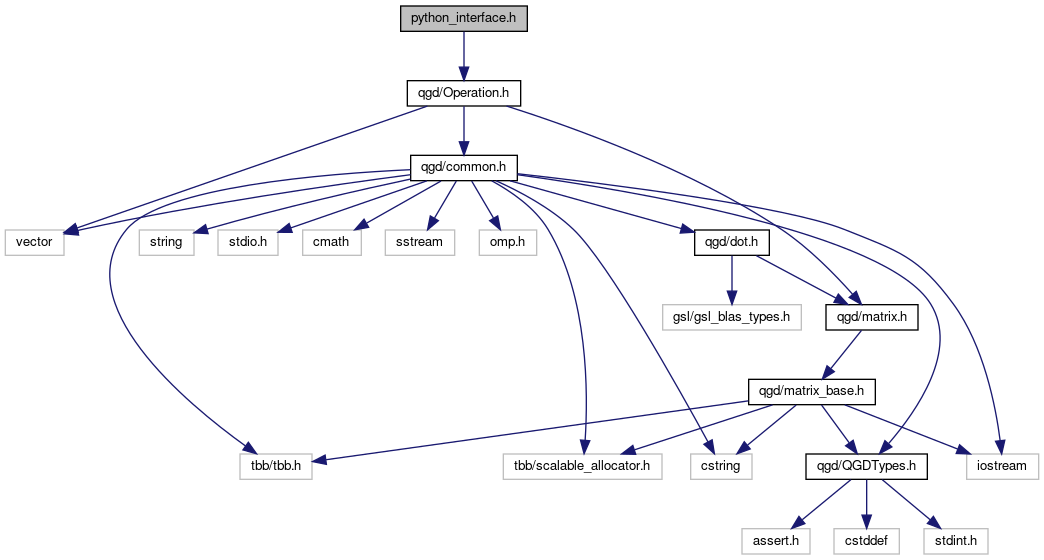

Include dependency graph for python_interface.h:

This graph shows which files directly or indirectly include this file:

Functions
int	iface_delete_N_Qubit_Decomposition (void *ptr)
	Call to deallocate the N_Qubit_Decomposition class. More...

int	iface_get_operation (void ptr, int n, int &op_type, int &target_qbit, int &control_qbit, double parameters)
	Call to get the n-th optimized operation. More...

int	iface_get_operation_num (void *ptr)
	Call to get the number of decomposing operations. More...

void	iface_list_operations (void *ptr, int start_index)
	Call to list the operations giving the decomposition of the unitary. More...

void *	iface_new_N_Qubit_Decomposition (double mtx_real, double mtx_imag, int qbit_num, bool optimize_layer_num, int initial_guess_num)
	Creates an instance of class N_Qubit_Decomposition and return with a void pointer pointing to the class instance. More...

int	iface_set_identical_blocks (void *ptr, int qbit, int identical_blocks)
	Set the number of identical successive blocks during the subdecomposition of the qbit-th qubit. More...

int	iface_set_iteration_loops (void *ptr, int qbit, int iteration_loops)
	Set the number of iteration loops during the subdecomposition of the qbit-th qubit. More...

int	iface_set_max_layer_num (void *ptr, int qbit, int max_layer_num)
	Set the maximal number of layers used in the subdecomposition of the qbit-th qubit. More...

int	iface_set_optimalization_block (void *ptr, int optimalization_block)
	Call to set the number of blocks to be optimized in one shot. More...

int	iface_set_verbose (void *ptr, bool verbose)
	Call to set the verbosity of the N_Qubit_Decomposition class. More...

int	iface_start_decomposition (void *ptr)
	Starts the decomposition of the unitary. More...

Detailed Description

Header file for a methods of the QGD Python Interface.

Definition in file python_interface.h.

Function Documentation

◆ iface_delete_N_Qubit_Decomposition()

int iface_delete_N_Qubit_Decomposition ( void * ptr )

Call to deallocate the N_Qubit_Decomposition class.

Parameters

ptr	A void pointer pointing to an instance of N_Qubit_Decomposition class.

Definition at line 99 of file python_interface.cpp.

◆ iface_get_operation()

int iface_get_operation	(	void *	ptr,
		int	n,
		int &	op_type,
		int &	target_qbit,
		int &	control_qbit,
		double *	parameters
	)

Call to get the n-th optimized operation.

The values are returned via the input parameter references, and pointers

Parameters

ptr	A void pointer pointing to an instance of N_Qubit_Decomposition class.
n	Integer labeling the n-th oepration (n>=0).
op_type	The type of operation. (Possible values: CNOT_OPERATION=2, U3_OPERATION=3)
target_qbit	The id of the target qubit.
control_qbit	The id of the control qubit.
parameters	A pointer pointing to the 3-component array conatining the parameters of the U3 operation.

Returns: Returns with 0 if the export of the n-th operation was successful. If the n-th operation does not exists, -1 is returned. If the operation is not allowed to be exported, i.e. it is not a CNOT or U3 operation, then -2 is returned.

Definition at line 186 of file python_interface.cpp.

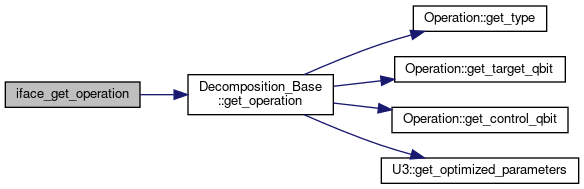

Here is the call graph for this function:

◆ iface_get_operation_num()

int iface_get_operation_num ( void * ptr )

Call to get the number of decomposing operations.

Parameters

ptr	A void pointer pointing to an instance of N_Qubit_Decomposition class.

Definition at line 167 of file python_interface.cpp.

Here is the call graph for this function:

◆ iface_list_operations()

void iface_list_operations	(	void *	ptr,
		int	start_index
	)

Call to list the operations giving the decomposition of the unitary.

Parameters

ptr	A void pointer pointing to an instance of N_Qubit_Decomposition class.
start_index	The starting number of the operations to be listed.

Definition at line 156 of file python_interface.cpp.

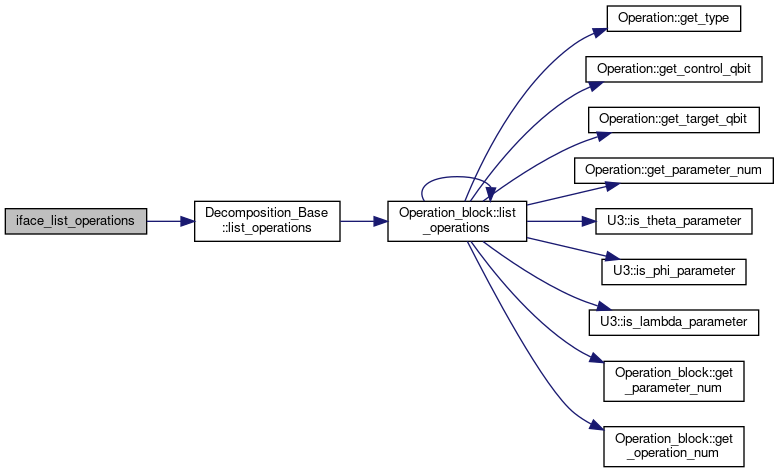

Here is the call graph for this function:

◆ iface_new_N_Qubit_Decomposition()

void* iface_new_N_Qubit_Decomposition	(	double *	mtx_real,
		double *	mtx_imag,
		int	qbit_num,
		bool	optimize_layer_num,
		int	initial_guess_num
	)

Creates an instance of class N_Qubit_Decomposition and return with a void pointer pointing to the class instance.

Parameters

mtx_real	Pointer to the real part of the unitary to be decomposed
mtx_imag	Pointer to the imaginary part of the unitary to be decomposed
qbit_num	Number of qubits spanning the unitary
optimize_layer_num	Logical value. Set true to optimize the number of decomposing layers during the decomposition procedure, or false otherwise.
initial_guess_num	Integer encoding the method to guess initial values for the optimalization. Possible values: 'zeros=0','random=1', 'close_to_zero=2'

Returns: Return with a void pointer pointing to an instance of N_Qubit_Decomposition class.

Parameters

mtx_real	Pointer to the real part of the unitary to be decomposed
mtx_imag	Pointer to the imaginary part of the unitary to be decomposed
qbit_num	Number of qubits spanning the unitary
optimize_layer_num	Logical value. Set true to optimize the number of decomposing layers during the decomposition procedure, or false otherwise.
initial_guess_num	Integer encoding the method to guess initial values for the optimization. Possible values: 'zeros=0','random=1', 'close_to_zero=2'

Returns: Return with a void pointer pointing to an instance of N_Qubit_Decomposition class.

Definition at line 41 of file python_interface.cpp.

Here is the call graph for this function:

◆ iface_set_identical_blocks()

int iface_set_identical_blocks	(	void *	ptr,
		int	qbit,
		int	identical_blocks
	)

Set the number of identical successive blocks during the subdecomposition of the qbit-th qubit.

Parameters

ptr	A void pointer pointing to an instance of N_Qubit_Decomposition class.
qbit	The number of qubits for which the subdecomposition should contain identical_blocks successive identical blocks.
identical_blocks	Number of successive identical blocks in the decomposition.

Definition at line 118 of file python_interface.cpp.

Here is the call graph for this function:

◆ iface_set_iteration_loops()

int iface_set_iteration_loops	(	void *	ptr,
		int	qbit,
		int	iteration_loops
	)

Set the number of iteration loops during the subdecomposition of the qbit-th qubit.

Parameters

ptr	A void pointer pointing to an instance of N_Qubit_Decomposition class.
qbit	The number of qubits for which the subdecomposition should run iteration_loops number of iterations in each step of the optimization.
iteration_loops	Number of iteration in each step of the subdecomposition.

Definition at line 131 of file python_interface.cpp.

Here is the call graph for this function:

◆ iface_set_max_layer_num()

int iface_set_max_layer_num	(	void *	ptr,
		int	qbit,
		int	max_layer_num
	)

Set the maximal number of layers used in the subdecomposition of the qbit-th qubit.

Parameters

ptr	A void pointer pointing to an instance of N_Qubit_Decomposition class.
qbit	The number of qubits for which the subdecomposition should contain maximum max_layer_num layers of operation blocks.
max_layer_num	The number of maximal number of layers used in the subdecomposition.

Definition at line 144 of file python_interface.cpp.

Here is the call graph for this function:

◆ iface_set_optimalization_block()

int iface_set_optimalization_block	(	void *	ptr,
		int	optimalization_block
	)

Call to set the number of blocks to be optimized in one shot.

Parameters

ptr	A void pointer pointing to an instance of N_Qubit_Decomposition class.
optimalization_block	The number of blocks to be optimized in one shot

Returns: Returns with 0 on success

Definition at line 223 of file python_interface.cpp.

Here is the call graph for this function:

◆ iface_set_verbose()

int iface_set_verbose	(	void *	ptr,
		bool	verbose
	)

Call to set the verbosity of the N_Qubit_Decomposition class.

Parameters

ptr	A void pointer pointing to an instance of N_Qubit_Decomposition class.
verbose	Set False to suppress the output messages of the decompostion, or True (deafult) otherwise.

Returns: Returns with 0 on success

Definition at line 207 of file python_interface.cpp.

Here is the call graph for this function:

◆ iface_start_decomposition()

int iface_start_decomposition ( void * ptr )

Starts the decomposition of the unitary.

Parameters

ptr	A void pointer pointing to an instance of N_Qubit_Decomposition class.

Definition at line 85 of file python_interface.cpp.

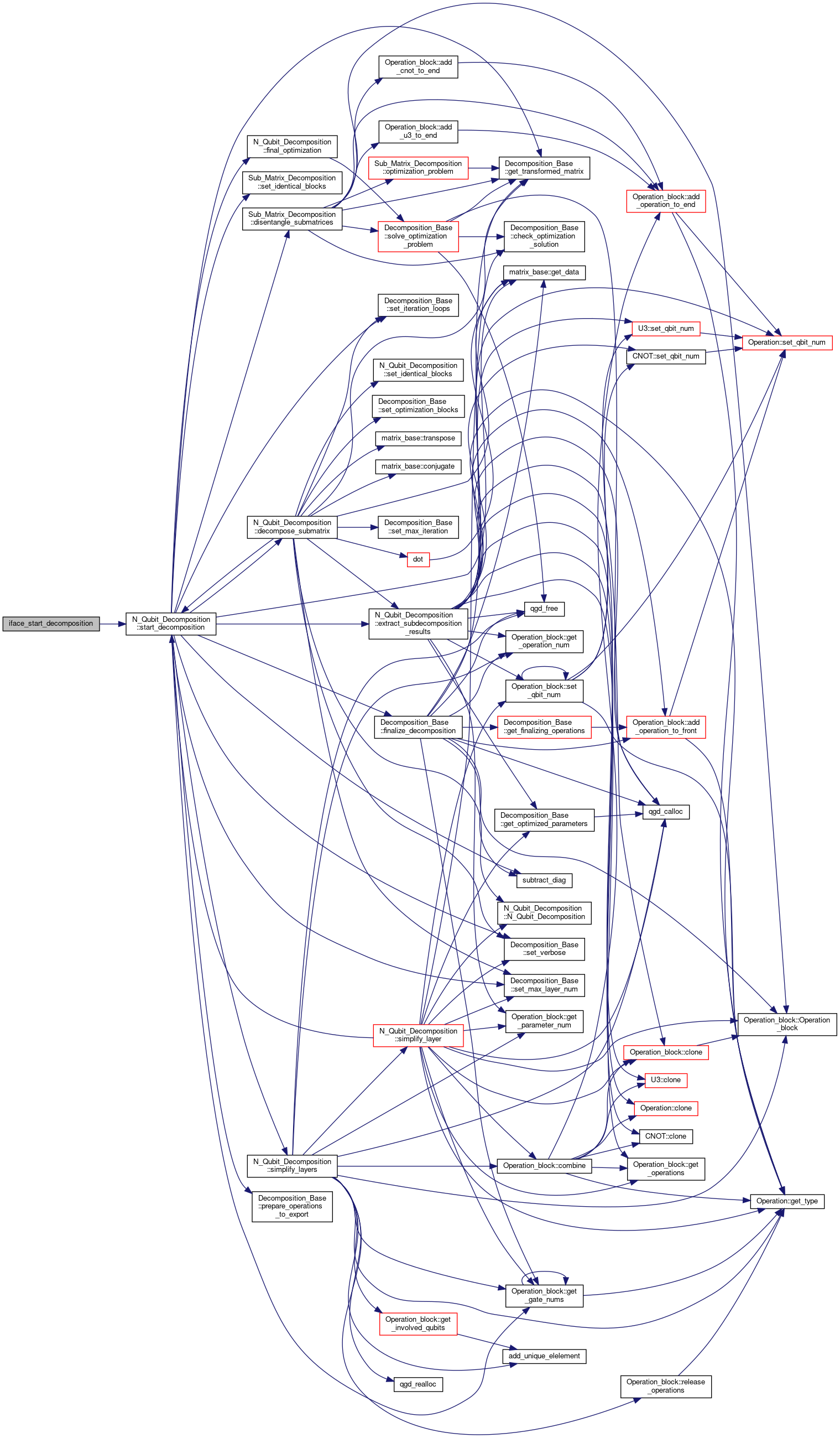

Here is the call graph for this function:
